Products

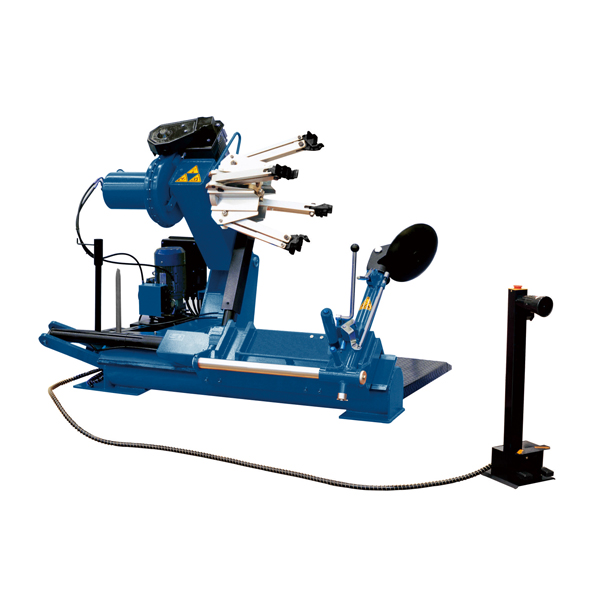

APO-T420 Heavy-Duty Truck Tire Changer

The APO-T420 Heavy-Duty Truck Tire Changer is a heavy duty truck tire changer designed and engineered to handle rim sizes from 4 1/4″ to 56″ and tire diameters in excess of over 90″. The APO-T420 Truck Tire Changer can easily accommodate tires with a maximum width of up to 42″. The U-296 handles off-road tires, agricultural tires, super single tires, and skidder tires with ease.

Description

The APO-T420 Heavy-Duty Truck Tire Changer is a heavy duty truck tire changer designed and engineered to handle rim sizes from 4 1/4″ to 56″ and tire diameters in excess of over 90″. The APO-T420 Truck Tire Changer can easily accommodate tires with a maximum width of up to 42″. The U-296 handles off-road tires, agricultural tires, super single tires, and skidder tires with ease.

Features:

1. Clockwise and anticlockwise rotation of the clamp range from 14″-42″.
2. Automatic electrohydraulic operation
3. Movable control unit
4. Hydraulic motor with pressure adjustment device
5. Automatic fast turning
6. Portable console

Additional information

Product

Heavy-duty truck tire changer

Hydraulic pump motor

220v (3ph) / 380v(3ph) 2.2kw

Rotating motor

220v (3ph) / 380v(3ph) 2.2kw

Clamping capacity

14~42"

Max.wheel diameter

≤2300mm (90")

Max.wheel width

≤1050mm (41")

N/G weight

774/860 kg (1706/1896 lbs)

Package dimension

1900*2100*1000mm (6.2*6.9*3.3ft)

Noise Level

≤75 dB

Optlonal

Remote control unit
