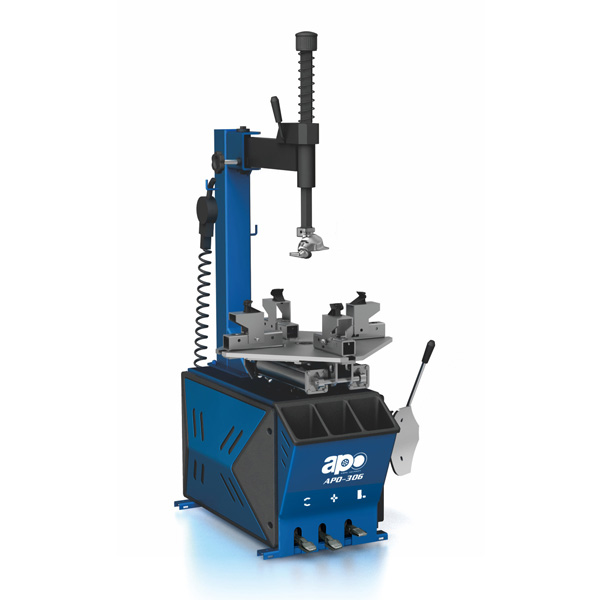

APO-306 Wheel Clamp Motorcycle Tire Changer with Motorcycle Adaptor

The APO-306 Tire Changer with Assist Arm is specifically designed for changing motorcycle and ATV tires with an outside clamping range of 6″ – 24″. The pro-series design features raised clamps to allow for clamping of most motorcycle wheels with disc brakes and drive components still installed. Plastic clamps are designed to protect the clamped wheel. Two sizes of demount heads included for both ATV (smaller) and motorcycle (larger) that includes plastic protection for wheels. Features a powerful bead breaker and a handheld inflation gun.

Category:

Description

The APO-306 Tire Changer with Assist Arm is specifically designed for changing motorcycle and ATV tires with an outside clamping range of 6″ – 24″. The pro-series design features raised clamps to allow for the clamping of most motorcycle wheels with disc brakes and drive components still installed. Plastic clamps are designed to protect the clamped wheel. Two sizes of demount heads are included for both ATV (smaller) and motorcycle (larger) that includes plastic protection for wheels. Features a powerful bead breaker and a handheld inflation gun.

Features:
1. Swing arm
2. Standard Mount/demount plastic protection
3. Standard motorcycle adaptor
4. 630*14mm solid turntable base
5. Powerful heavy-duty bead breaker blade
6. Extra options: Optional plastic jaw protection; Optional bead locking clamp helps to unload large tires more convenient

Additional information

External clamping

6~24”

Max.wheel diameter

≤1040mm(41”)

Max.wheel Width

≤355mm(14”)

Noise level

<75dB

Working pressure

8-10bar (116-145 psi)

Optional power supply

110v (1ph)/ 220v (1/3ph) / 380v(3ph)

Motor power

0.55/0.75/1.1 kw

N/G weight

178/201kg(392.4/443.2 lbs)

Package dimension

960*760*1080mm(3.1*2.5*3.6 ft)
