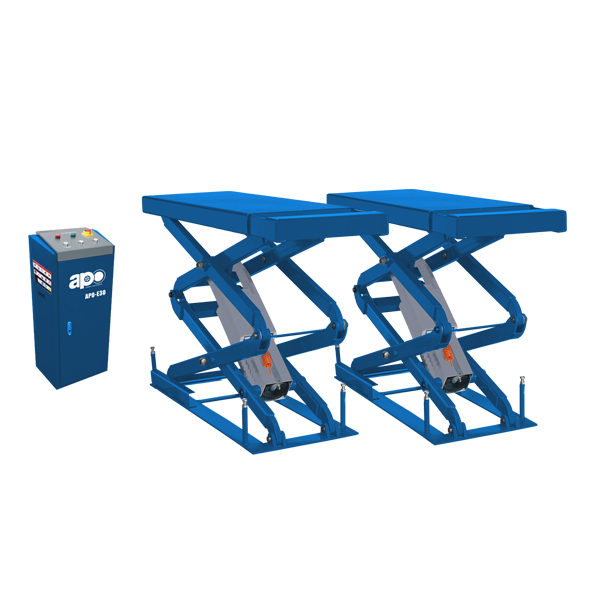

3.5 T Capacity APO-E35 Full Rise Scissor Lift

The APO-E35 full rise scissor lift is a low profile 3500kg capacity double scissor lift that was engineered with efficiency and productivity in mind. The APO-E35 full-rise scissor lift can easily lift all makes and models (within rated capacity) with a synchronized hydraulic system. The APO-E35 full-rise scissor lift also offers free access all around the lifted vehicle and between platforms, with a cross-member-free design providing an uncluttered and hazard-free work area. The APO-E35 full-rise scissor lift is available flush mount, and surface mount.

Categories: ,

Description

The APO-E35 full rise scissor lift is a low profile 3500kg capacity double scissor lift that was engineered with efficiency and productivity in mind. The APO-E35 full-rise scissor lift can easily lift all makes and models (within rated capacity) with a synchronized hydraulic system. The APO-E35 full-rise scissor lift also offers free access all around the lifted vehicle and between platforms, with a cross-member-free design providing an uncluttered and hazard-free work area. The APO-E35 full-rise scissor lift is available flush mount, and surface mount.

Safety Features:

1. Precision machined safety lock

2. Safety descending stop & alarm

3. Safety valve for anti-explosion of hydraulic system

4. Height limit switch

5. EVA Rubber mat (4pcs/set)

Additional information

Model

APO-E35

Lifting Capacity

3500 KG(7,716 lbs)

Lifting Height

2050 mm (80")

Platform Height

330 mm (13")

Platform Length

1450mm (57" ) to 1750mm( 68.9")

Power Supply

220V 1PH 50/60Hz 2.2KW, 220/380V 3PH 50/60Hz 2.2KW

Release

Pneumatic Lock Release
